Description

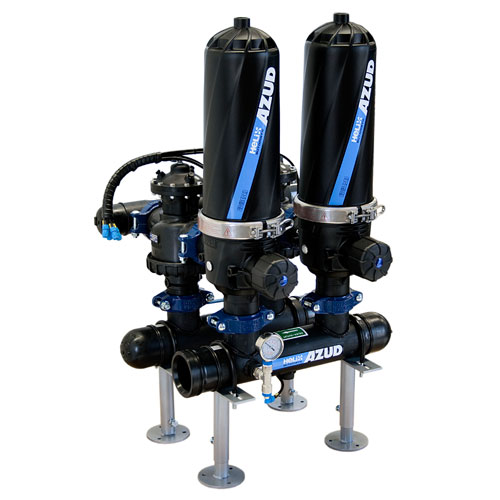

Automatic in-line Self Cleaning equipment with disc filtering element with 2″ valves (Series 200) or 3″ valves (Series 300). High Density Polyethylene manifolds. Easy to install. Maximum resistance and durability. Max flow 256 m3/h (1125 gpm).

Modular configuration allows design according to customer preference or space availability.

Automation available in 110 V, 220 V or 12 V. There are special options available for Low Pressure, High Pressure and Sea/Saline water conditions. Also possible to backwash with compressed air, minimizing the water loss during backwash.

Advantages

DISC FILTRATION. MAXIMUM SAFETY
Its patented design and high quality of materials used in manufacturing guarantee an extended life with high resistance.

AZUD HELIX SYSTEM
Optimizes the performance and minimizes the frequency of maintenance.

SELF-CLEANING FILTERING ELEMENT
Maximum saving of water with efficiency in backwashing. Large filtering area. AZUD offers discs from 5 to 400 micron.

MODULAR DESIGN
Versatility and compatibility. The system permits a wide range of possibilities with a minimal number of components

FACILITATES EASY TRANSPORTATION AND INSTALLATION
Equipment is pre-assembled.

MANUFACTURED IN PLASTIC MATERIALS

LOW MAINTENANCE
No tools required for maintenance. Maximum resistance with movable parts not susceptible to wear due to continuous operation.

WATER AND ENERGY SAVING

Additional information

AZUD HELIX AUTOMATIC backwashes only one station at a time. The remaining stations stay in filtration mode and continue to supply the installation.

FILTRATION STAGE. The Helix generates a centrifugal helical effect which moves the larger particles away from the discs. This allows the discs to concentrate on removing the finer particles without build up of the larger particles on the filtration surface.

BACKWASHING STAGE The filtered water is introduced in reverse through the filtering element which decompresses the stack of discs, starting the backwash. The solids are expelled from the discs and are then evacuated through the drainage manifold.

The filtration process starts again with the compression of the discs.

Description

AZUD HELIX AUTOMATIC backflushes in only one station while the rest of the equipment is in filtration stage, supplying the installation.

Operation

FILTRATION STAGE: The helix generates a centrifuge helical effect, which moves away from the discs the particles in the water.

Through the discs is made the in-depth filtration process.

BACKFLUSHING STAGE: The filtered water is introduced in the opposite direction through the filtering element structure, decompressing the stack of discs and making the backflushing.

The solids expelled from the discs are evacuated by the drainage manifold.

The filtration stage starts again with the compression of the discs.
