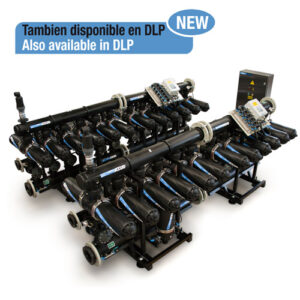

Automatic Disc Filteration System

Description
The AZUD HELIX AUTOMATIC range of filters offers multiple combinations to achieve an efficient and economic filtration solution, which can be adapted to various water conditions in the industrial, municipal, environmental, agricultural and landscaping markets.

– High autonomy and efficiency during the backwashing cycle even with low working pressure, from 1.5 bar (AZUD HELIX AUTOMATIC DLP Equipments).

– Specific materials can be used for compatibility with waters with extreme pH values (very high or very low). (AZUD HELIX AUTOMATIC AW Equipment).

– Especially designed equipments to applications in which it is necessary the validation/certification of the filter to its use in waters to human consumption (AZUD HELIX AUTOMATIC DW equipments).

– Equipments perfectly ready to be in contact with saline water without wearing for this reason, without limiting the saline concentration (AZUD HELIX AUTOMATIC SW equipments).

– Equipments perfectly ready to be in contact with chlorine water without wearing for this reason (AZUD HELIX AUTOMATIC CL equipments).

– Optimization of the filtration process using a minimum amount of water for backwashing (AZUD HELIX AUTOMATIC AA Equipment).

– For high pressure systems the choice of the correct design will assure the optimum performance for the life of the product (AZUD HELIX AUTOMATIC HP Equipment).

AZUD HELIX AUTOMATIC DLP

These equipments adapt to installations in which the pressure conditions are a limiting to the rest of self-cleaning systems, reducing the consumed water on the backflushing and maintenance and the pressure, optimizing the filtration process and improving the energy cost of the installation.

AZUD HELIX AUTOMATIC AGGRESSIVE WATER

These equipments are especially designed to concentrations of waters with extreme pH values (very high or very low). So much the inside as the outside of the equipment incorporate compatible components with the usual exposure conditions in this kind of applications.

AZUD HELIX AUTOMATIC DRINKING WATER

AZUD HELIX AUTOMATIC DW equipments are especially designed to applications in which it is necessary the validation/certification of the filter to its use in waters to human consumption.

AZUD HELIX AUTOMATIC SALINE WATER

The combination and technical characteristics of AZUD HELIX AUTOMATIC SW equipments are exactly the same than the standard equipments, but all the components are perfectly ready to be in contact with this type of water without wearing for this reason, without limiting in the saline concentration.

AZUD HELIX AUTOMATIC CL

If the application is for aggresive water, as high chlorine concentrations (CL), the combination and characteristics of AZUD HELIX AUTOMATIC CL equipments are exactly the same than standard equipments, but all the components are perfectly ready to be in contact with water with high chlorine concentrations, without wearing for this reason.

AZUD HELIX AUTOMATIC AA

This equipment allows the use of Disc Filtration in applications where minimal water loss is desired. Incorporating air in the backwash process decreases the amount of water used in the backwash process by about 80%.

AZUD HELIX AUTOMATIC HP

This equipment supplies the same filtration quality as the standard disc filter, with the ability of working with pressures from 3-16 bar (45-230 psi). All the manifolds, base, lids, and connection pipes are made of metal. The control unit incorporates a differential pressure gauge and a second pressure gauge controlling the maximum pressure which offers auxiliary protection under working conditions outside of the recommenden parameters.
